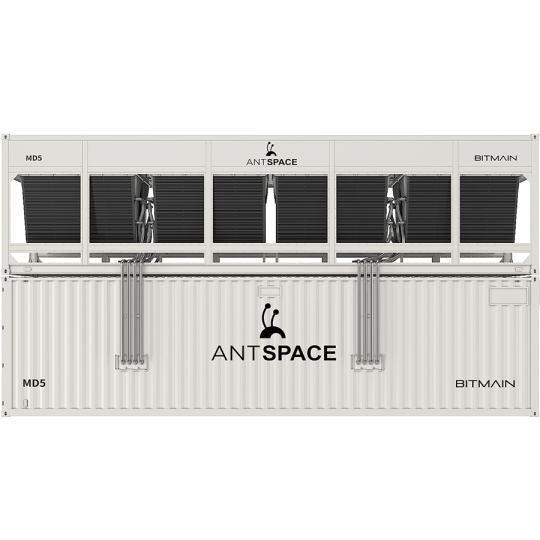

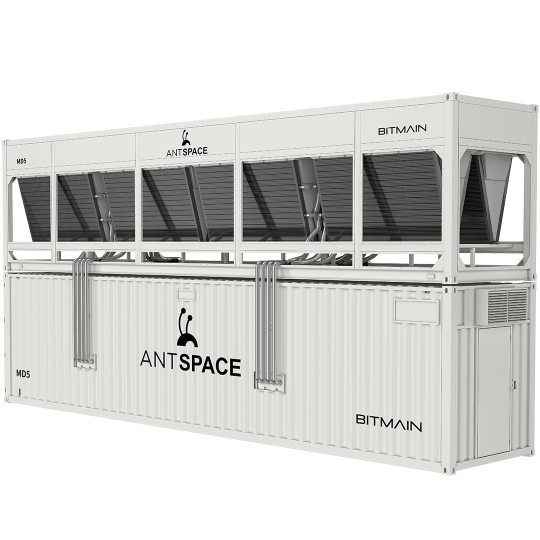

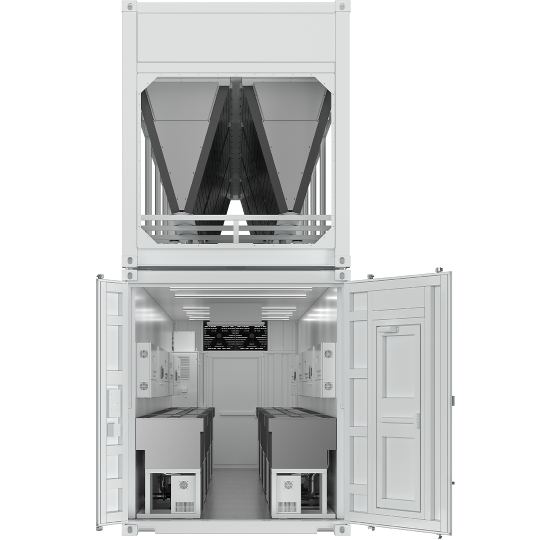

ANTSPACE MD5
ANTSPACE MD5
Regular price
$216,000.00 USD
Regular price
$236,000.00 USD
Sale price
$216,000.00 USD
Unit price
/
per
Couldn't load pickup availability
ANTSPACE MD5
| Specifications
Specifications For ANTSPACE MD5
| Product Overview | Value |
| Model | ANTSPACE MD5 |
| Dimensions (l*w*h), mm | 12192×2438×2896 |
| Miner capacity | 160 units -S21 Imm. & S21 XP Imm. |
| Container certification | China Classification Society Certification |
| Safety certification |
NFPA 79: 2024 |
| Operating power, kW | 1000 |
| PUE(Power usage effectiveness), @25℃ ambient temperature | 1.06 |
| Input voltage and frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 12 |
| Operating weight, T | 18.5 |
| Main switch of power distribution cabinets, A | 1200*2 |
| Rated current, A | A: 952; B: 866 |
| Rated Current per Miner, A | 20 |
| Inlet cable |
The inlet cables can withstand high-voltage of above 600V, with the following requirements: |
| Connection interface (Cooling Tower) | DN 65 (ISO2852 PN16） |
Specifications For Dry Tower
| Product Overview | Value |
| Dimensions(L*W*H), mm | 12192×2438×2896 |
| Outlet Temperature @30℃ ambient temperature | 35℃ (Outlet temp 5℃ above ambient temp) |
| Container Certification | China Classification Society Certification |
| Operating Power, kW | 100 |
|
Motor Rated Voltage and Frequency |
400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 11.8 |
| Operating weight, T | 12.8 |
| Connection interface | DN 65 (ISO2852 PN16） |
| Noise Level @25℃， 15m, dBA | 70 |
| Pipe materials | 304 stainless steel |
Notes:
(1-1) The hashrate value, power on wall, and power efficiency on wall are all typical values. The actual hashrate value fluctuates by ±3%, and the actual power on wall and power efficiency on wall fluctuate by ±5%.
(1-2) Inlet coolant temperature.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) For detailed working coolant use and maintenance instructions, please refer to "ANTSPACE HK3 Water Cooling Container & Dry-Wet Tower Product Manual", Chapter 9, Article 3, Point 6, "Maintenance of Coolant"!
| Purchasing Guidelines
1. The shipping costs, customs charges, and taxes(if any) are not included in the retail price shown above.
2. After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by MININGSAVE.
3. The pictures shown are for reference only; the final shipment version shall prevail.
| Shipping Details
1. Shipments will be scheduled on a first-paid-first-ship basis for orders on which MININGSAVE has received full payment.
2. You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It's highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
3. Click here to download Certificates of Conformity and find additional information on customs clearance for MININGSAVE products.
| Warranty
1. A 365-day warranty is provided starting from the shipping date. MININGSAVE will cover shipping costs when shipping a replacement unit within the warranty period.
2. The warranty only applies to the original purchaser who purchased the machine directly from MININGSAVE. Once the miner is resold, warranty coverage becomes the responsibility of the re-seller.
3. If the user fails to use the product per the given instructions, specifications, and conditions provided or changes the function settings of the unit without MININGSAVE's prior consent, MININGSAVE will not be liable for any damage arising therefrom.
4. Click here for a complete list of the Terms & Conditions that apply to all orders placed on https://miningsave.com/.
